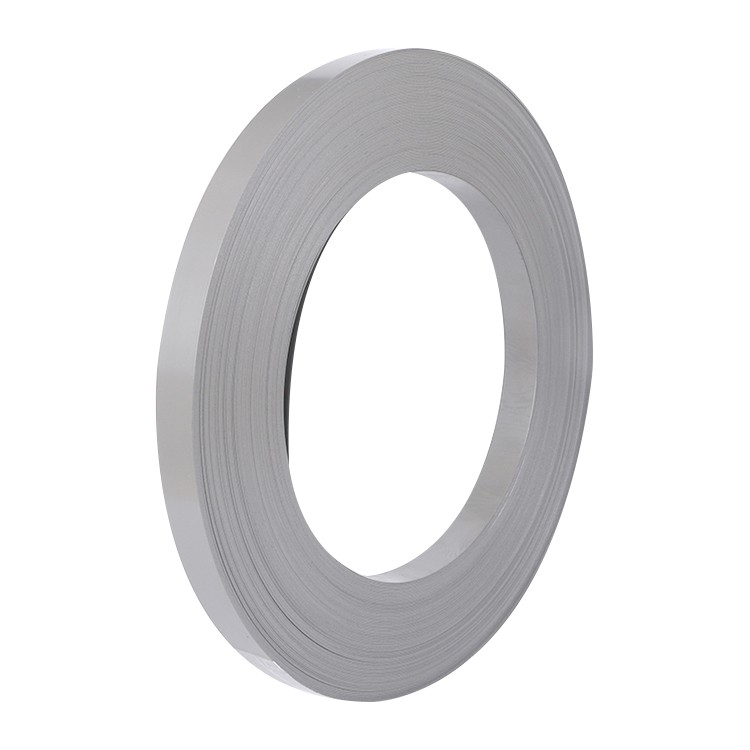

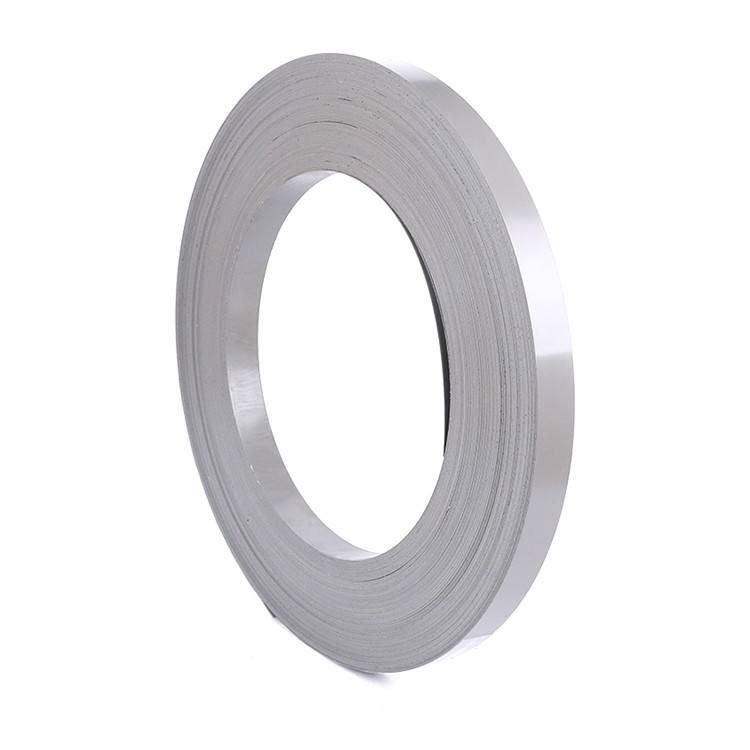

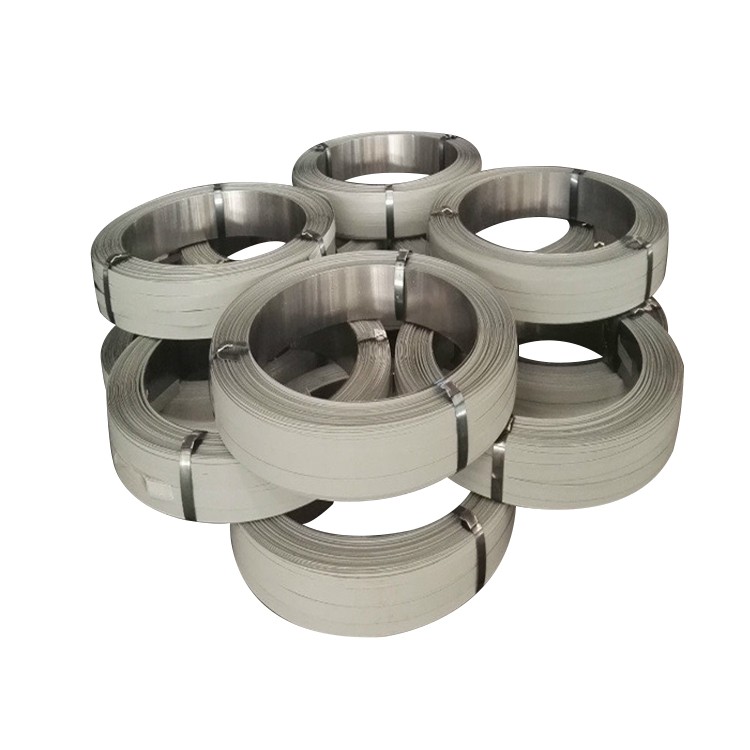

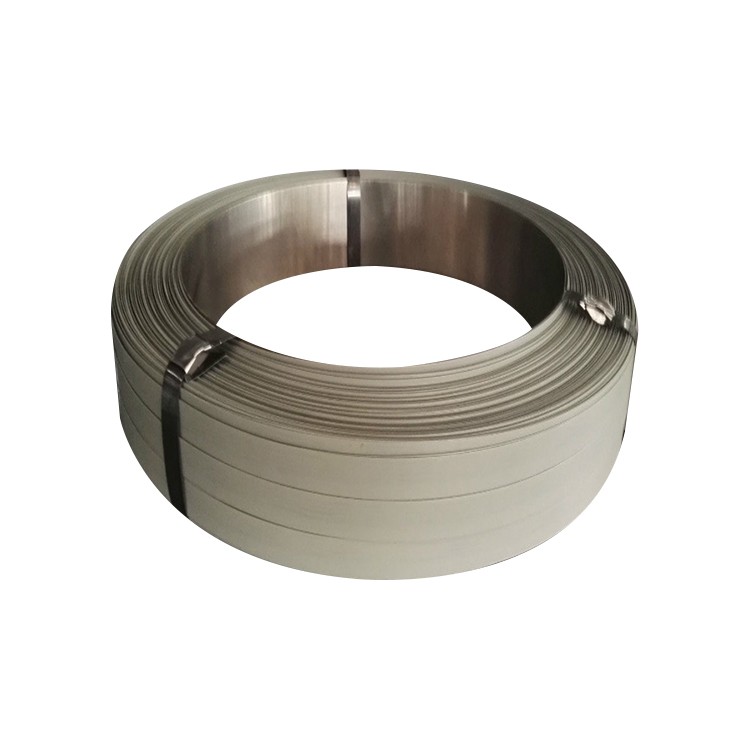

Grey Painted Steel Strapping
Parameter:


Surface finish: Painted and waxed
Material: Q235/Q345B/B235
Thickness:0.3-1.5mm(0.02mm tolerance)
Width:12.7-32mm(0.1mm tolerance)
Tensile strength:580-980Mpa

Elongation: 3%-10%
Winding type: Ribbon/Oscillated

Package:Customized/hessian cloth/compound paper/corrugated carton,wood/iron pallet,etc.




DETAIL



Product description

The steel strapping is made of cold rolled plain carbon structural steel and high quality carbon structural steel which was blue tempered by High frequency induction heating,then painted or galvanized and waxed in the end.It can bear bigger tension, and have good resistance to impact,so it’s widely used for packing in wood, paper, glass, stone, steel, metallurgy, non-ferrous metal industry etc.


Product images

Grey Painted Steel Strapping(图1)

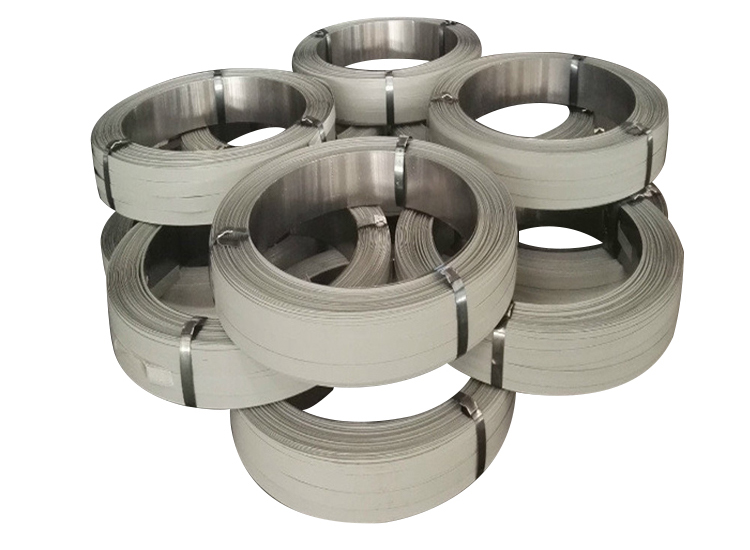

Grey Painted Steel Strapping(图2)

Specifications


Material

Q195, Q235, B235, DB460, 980KD

Application

Ferrous metallurgy, non-ferrous metals, glass and building materials, etc.

Place of Origin

China

Standard

Chinese standards (GB/T25820-2018) ,
European standards (BS EN 13246-2001) ,
American standards (ASTMD 3959-2015)

Width

12.7,16,19,25.4,31.75 mm

(Width tolerance:±0.1mm)

Thickness

0.38,0.4,0.5,0.56,0.58,0.6,0.62,0.64,0.7,0.8,0.9,1.0 mm
(Thickness tolerance:±0.02mm)

Tensile strength

750 / 800 / 850 / 880 / 900 / 930 / 950 / 980Mpa

Elongation

3-12%

Surface treatment

Blue tempered &oiled/ waxed, Black/color painted & waxed

Winding Type

Ribbon,Oscillated,Jumbo

Inner Diameter

200/305/406mm

Package

Customized/hessian cloth/compound paper/corrugated carton,wood pallet/iron pallet,etc.

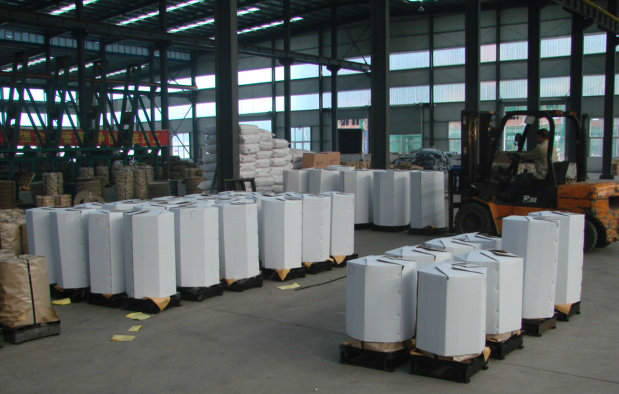

Package


Grey Painted Steel Strapping(图3)

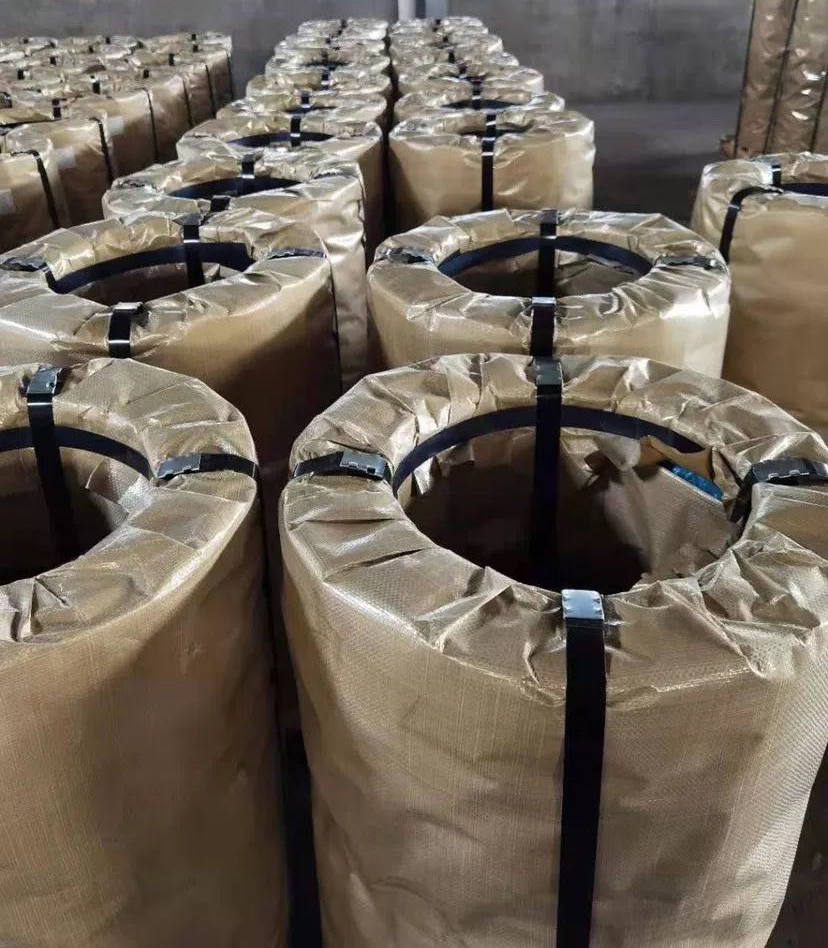

Warehouse

Grey Painted Steel Strapping(图4)

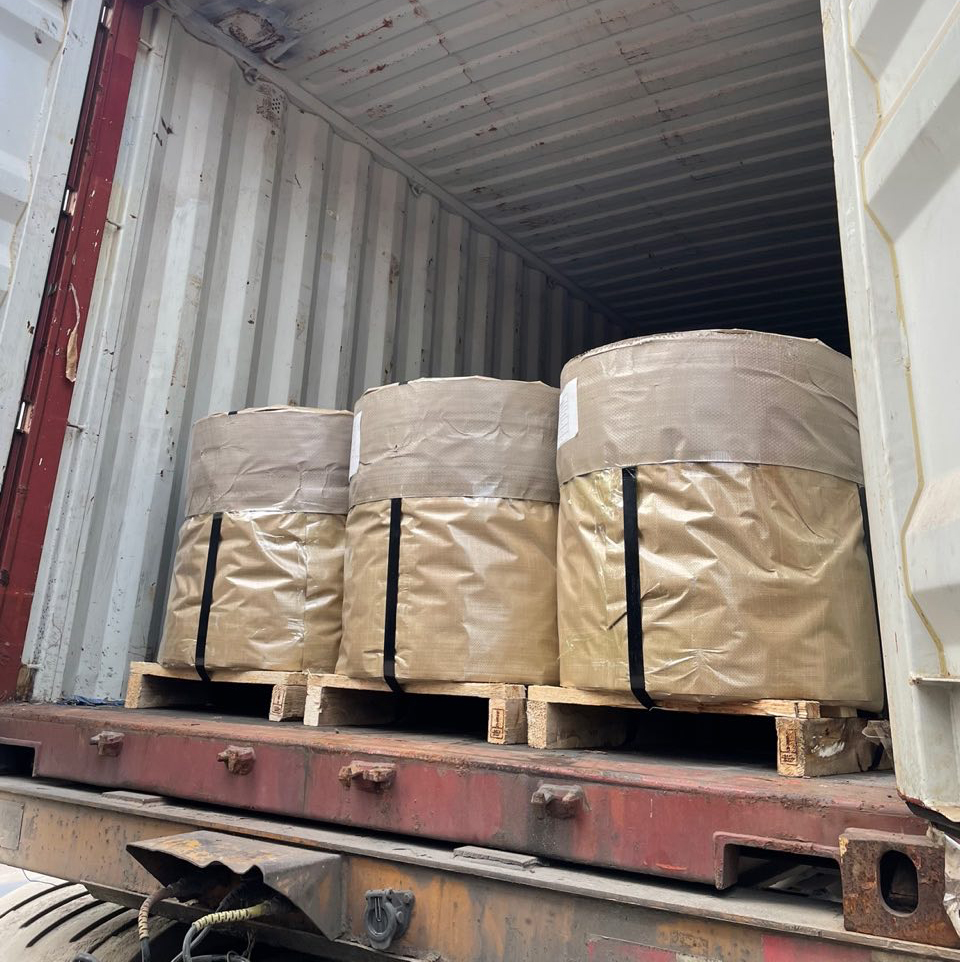

Container Loading


Grey Painted Steel Strapping(图5)

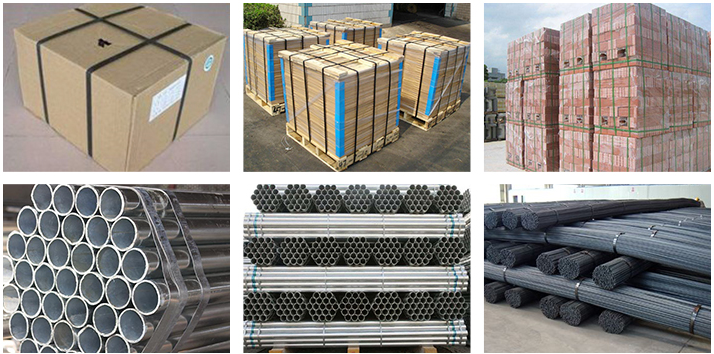

Application

Grey Painted Steel Strapping(图6)

FAQ

Q:What’s the MOQ for your products?

A: If we have the products in stock, it will be no MOQ: If we need to produce, we can discuss the MOQ according to customer’s  requirements.

Q:Is the sample available?

A:Yes, we are can provide free samples.

Q:Could you print our company LOGO on the package?

A:Yes, we can do.

Q:What’s the payment terms?

A:T.T with 30% down payment,70% against B/L copy or L/C at sight.

Q:Are the products tested before shipping?

A:Yes, of course. All products have been 100%QC before shipping. We test every batch every day.
